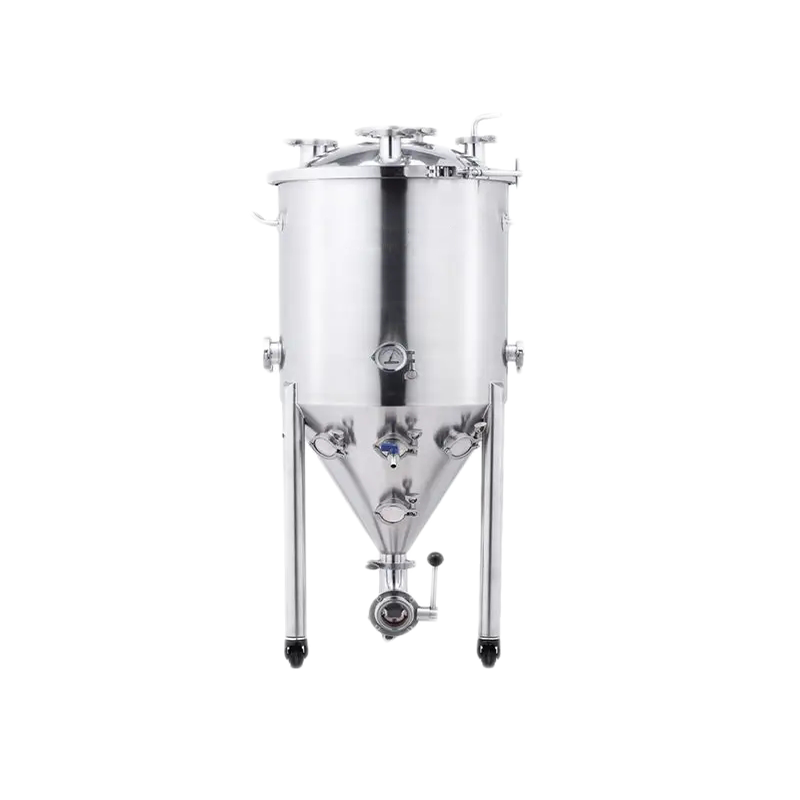

1.30L Conical Presurized Fermenter
2. Body 1.2mm thickness, lid 1.0mm thickness. Both made of 304SS
3. Working pressure is 1bar, the maximum can bear 2bar, the standard pressure relief valve is 1bar. (About 15psi for 1bar)
4. Stainless steel handle*2
5. 1 x 4'' ferrule +1 x 1.5'' vertical ferrule on lid
6. 1.5'' ferrule on tank
7. 1.5'' ferrule on cone
8. 1 x 2'' ferrule at bottom
9. φ40 one piece leg with 2'' wheels*3pcs
10. Etching water level
11. Max Volume: 32L up to top
12. Working Volume: 30L effective volume
13. Diameter: 350mm Optional 1: add 2.5'' TC port fixed with 304SS heating element, Optional 2: customized insulating jacket
